Find the correct fixings for your Handles

Our premium pull door handles come with a comprehensive range of high-quality fixings, ensuring easy installation and compatibility with various configurations. Whether you need bolt-through, face-fixed, or back-to-back setups, our fixings are tailored for glass, steel, aluminium, timber, and armour-plated glass-clad door assemblies.

Each fixing is meticulously designed, rigorously tested for superior strength, and built for lasting durability. Manufactured in-house with precision, our fixings guarantee reliable performance and low-maintenance solutions for your door handle needs. Choose our expertly engineered fixings to complement your pull door handles seamlessly.

Technical diagram of a door fitting showing plan view with M12 spindle and Allen screw. Suitable for timber or metal doors 35mm-54mm thick.

F1.85 SUITABLE FOR TIMBER OR METAL DOORS 35MM-54MM THICK

  • Handles fixed in a back to back configuration by means of a 12mm threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw. HOLE PREP. 12.5mm Dia

  • 12.5mm

  • Timber or Metal

Technical drawing of a door lock installation for timber or metal doors, showing plan view with M12 spindle and Allen screw, suitable for 55mm-69mm thickness.

F1.100 SUITABLE FOR TIMBER OR METAL DOORS 55MM-69MM THICK

  • Handles fixed in a back to back configuration by means of a 12mm threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw. HOLE PREP. 12.5mm Dia

  • 12.5mm

  • Timber or Metal

Technical diagram of F1.120 suitable for timber or metal doors, 70mm-85mm thick, showing plan view with M12 spindle, indicating external and internal sides, metal or timber door, and Allen screw.

F1.120 SUITABLE FOR TIMBER OR METAL DOORS 70MM-85MM THICK

  • Handles fixed in a back to back configuration by means of a 12mm threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw. HOLE PREP. 12.5mm Dia

  • 12.5mm

  • Timber or Metal

Plan view of door installation showing M12 spindle and Allen screw with labels for external and internal sides, suitable for timber or metal doors 86mm-105mm thick.

F1.140 SUITABLE FOR TIMBER OR METAL DOORS 86MM-105MM THICK

  • Handles fixed in a back to back configuration by means of a 12mm threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw. HOLE PREP. 12.5mm Dia

  • 12.5mm

  • Timber or Metal

Technical drawing of a door mechanism for glass doors 10mm-25mm thick, showing an M12 spindle, plastic washers, plastic ferrule, and Allen screw, labeled external and internal.

F2 SUITABLE FOR GLASS DOORS 10MM-25MM THICK

  • Handles fixed in a back to back configuration to glass by means of a threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw, all come complete with washers and sleeves to protect the glass door. HOLE PREP. 18mm Dia

  • 18mm

  • Glass

Technical drawing showing a plan view of a fitting for a glass door. Includes labels for a plastic washer, plastic ferrule, M12 smooth-headed bolt, glass door, and dimensions suitable for glass doors 10mm-25mm thick. Features external and internal parts.

F2A SUITABLE FOR GLASS DOORS 10MM-25MM THICK

  • Handles fixed single-sided to glass with a threaded decorative solid smooth headed bolt, available in a range of finishes to match handles supplied with washers and sleeves. HOLE PREP. 18mm Dia

  • 18mm

  • Glass

Technical plan view of bolt in metal or timber door, labeled "External" and "Internal," suitable for 35mm-55mm thick doors, with countersunk bolt.

F3.70 SUITABLE FOR TIMBER OR METAL DOORS 35MM – 55MM THICK

  • Handle fixed single-sided using a countersunk 12mm threaded machine screw. HOLE PREP. 12.5mm Dia and countersunk. Designed for application with our push plates

  • 12.5mm

  • Timber or Metal

Technical drawing of a door section with a countersunk bolt for timber or metal doors, showing external and internal views, suitable for doors 56mm-75mm thick.

F3.90 SUITABLE FOR TIMBER OR METAL DOORS 56MM – 75MM THICK

  • Handle fixed single-sided using a countersunk 12mm threaded machine screw. HOLE PREP. 12.5mm Dia and countersunk. Designed for application with our push plates

  • 12.5mm

  • Timber or Metal

Plan view diagram of a metal or timber door with a countersunk bolt, suitable for doors 76mm-95mm thick.

F3.110 SUITABLE FOR TIMBER OR METAL DOORS 76MM – 95MM THICK

  • Handle fixed single-sided using a countersunk 12mm threaded machine screw. HOLE PREP. 12.5mm Dia and countersunk. Designed for application with our push plates

  • 12.5mm

  • Timber or Metal

Technical drawing showing plan view of door mechanism with countersunk bolt. Suitable for 35mm-55mm thick timber or metal doors, labeled internal and external.

F3A.70 SUITABLE FOR TIMBER OR METAL DOORS 35MM – 55MM THICK

  • Handle fixed single-sided using a countersunk 8mm threaded machine screw. HOLE PREP. 8.5mm Dia and countersunk. Designed for application with our push plates

  • 8.5mm

  • Timber or Metal

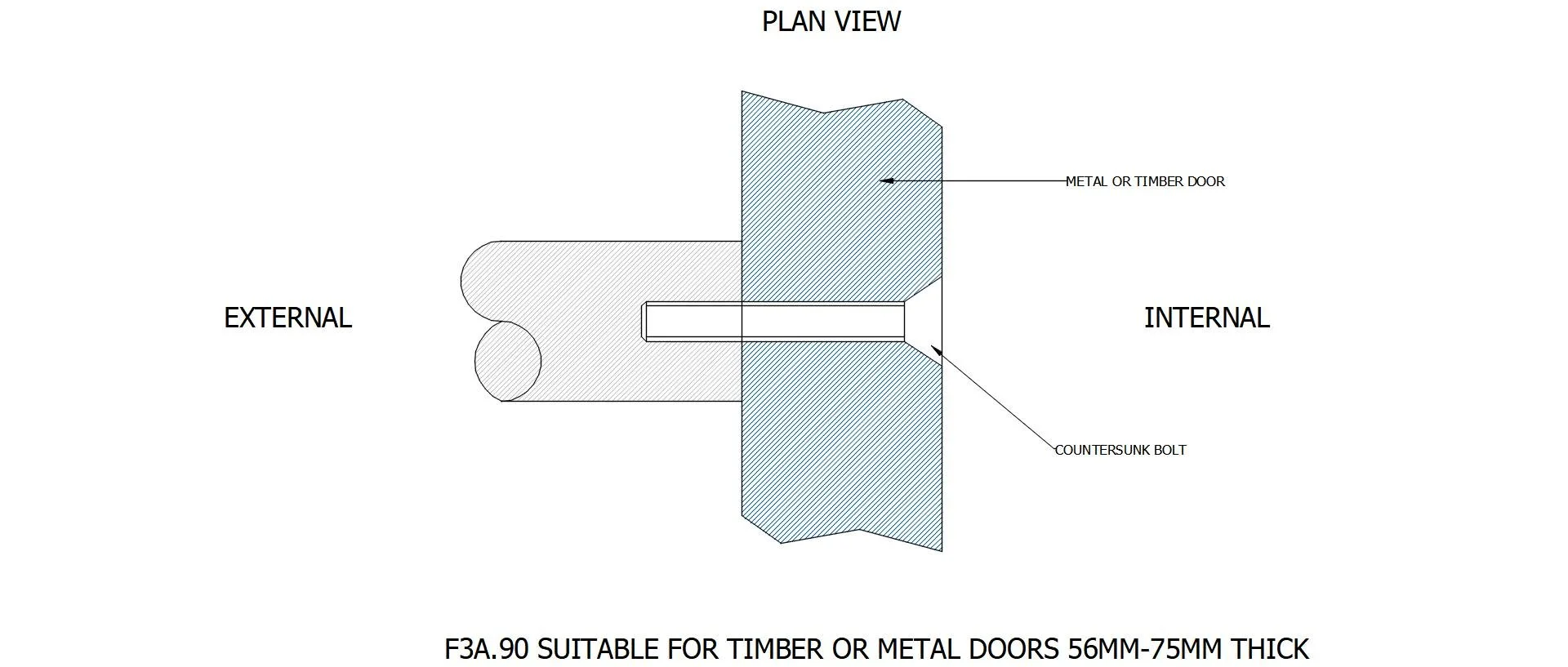

Plan view diagram showing a cross-section of a metal or timber door with a countersunk bolt, labeled 'External' and 'Internal'. Suitable for doors 56mm-75mm thick (model F3A.90)."

F3A.90 SUITABLE FOR TIMBER OR METAL DOORS 56MM – 75MM THICK

  • Handle fixed single-sided using a countersunk 8mm threaded machine screw. HOLE PREP. 8.5mm Dia and countersunk. Designed for application with our push plates

  • 8.5mm

  • Timber or Metal

Technical diagram of door assembly, showing plan view with external and internal labels. Includes metal or timber door and countersunk bolt for doors 76mm-95mm thick.

F3A.110 SUITABLE FOR TIMBER OR METAL DOORS 76MM-95MM THICK

  • Handle fixed single-sided using a countersunk 8mm threaded machine screw. HOLE PREP. 8.5mm Dia and countersunk. Designed for application with our push plates

  • 8.5mm

  • Timber or Metal

Technical drawing illustrating installation of a hexagon head bolt with washer in a metal or timber door, labeled "plan view," showing external and internal positioning, suitable for metal doors where glazing rebate can be removed.

F4 SUITABLE FOR METAL DOORS WHERE THE GLAZING REBATE CAN BE REMOVED

  • Single handle fixed by means of a M12 threaded bolt and washer. Ideal for use where concealed panic bars are fitted into aluminium styles. A portion of glazing rebate area must be removed prior to installation. HOLE PREP. 12.5mm Dia

  • 12.5mm

  • Metal

Technical drawing of a plan view illustrating a metal or timber door with a hexagon head bolt and washer. Includes external and internal labels, suitable for metal doors where glazing rebate can be removed.

F4A SUITABLE FOR METAL DOORS WHERE THE GLAZING REBATE CAN BE REMOVED

  • Single handle fixed by means of a M8 threaded bolt and washer. Ideal for use where concealed panic bars are fitted into aluminium styles. A portion of glazing rebate area must be removed prior to installation. HOLE PREP. 8.5mm Dia

  • 8.5mm

  • Metal

Technical drawing of M12 smooth headed bolt for metal or timber doors, thickness 35mm-55mm, with internal and external view labeled, plan view presented.

F5.70 SUITABLE FOR TIMBER OR METAL DOORS 35MM – 55MM THICK

  • Single handle fixed with threaded a threaded decorative solid smooth headed bolt, available in a range of finishes to match handles HOLE PREP. 12.5mm Dia

  • 12.5mm

  • Timber or Metal

Technical drawing of F5.90 door bolt suitable for timber or metal doors 56mm-75mm thick, showing plan view with external and internal labeling.

F5.90 SUITABLE FOR TIMBER OR METAL DOORS 56MM – 75MM THICK

  • Single handle fixed with threaded a threaded decorative solid smooth headed bolt, available in a range of finishes to match handles HOLE PREP. 12.5mm Dia

  • 12.5mm

  • Timber or Metal

Technical drawing of a metal or timber door with M12 smooth headed bolt, suitable for doors 76mm-95mm thick, labeled external and internal, plan view.

F5.110 SUITABLE FOR TIMBER OR METAL DOORS 76MM – 95MM THICK

  • Single handle fixed with threaded a threaded decorative solid smooth headed bolt, available in a range of finishes to match handles HOLE PREP. 12.5mm Dia

  • 12.5mm

  • Timber or Metal

Technical drawing of a door mechanism, featuring a dome nut, labeled plan view for metal or timber doors, suitable for 35mm-55mm thickness, indicating internal and external sides.

F6 SUITABLE FOR TIMBER OR METAL DOORS

  • Handles fixed in a back to back configuration by means of a threaded stud and dome nuts to both sides. Please specisfy door thickness when ordering. HOLE PREP. 8.5mm Dia

  • 8.5mm

  • Timber or Metal

Cross-section diagram of a door fitting with dome nut, metal or timber door, solid stainless bolt. Suitable for 35mm-55mm thick doors.

F6A SUITABLE FOR TIMBER OR METAL DOORS

  • Handles fixed single-sided by means of a threaded stud, dome nuts to internal bracket and a decorative solid smooth headed bolt to the external. Please specisfy door thickness when ordering. HOLE PREP. 8.5mm Dia

  • 8.5mm

  • Timber or Metal

Plan view diagram of glass door fitting with dome nut and neoprene pad labeled, suitable for ASH122 handles only.

F7 SUITABLE FOR GLASS DOORS

  • Handles fixed in a back to back configuration to glass by means of a threaded stud and dome headed nuts to both sides. All complete with protective pads and sleeves to suit glass doors. HOLE PREP. 12mm Dia

  • 12mm

  • Glass

Plan view of door handle assembly for glass doors, labeled with components: dome nut, glass door, plastic washer, neoprene pad, and plastic ferrule. Suitable for ASH122 handles.

F7A SUITABLE GLASS DOORS

  • Handles fixed single-sided to glass by means of a threaded stud, dome nut to internal bracket and a decorative solid smooth headed bolt to the external. Comes complete with protective pad and sleeve HOLE PREP. 12mm Dia

  • 12 mm

  • Glass

Technical drawing of a plan view for a door fixture, showing a 50mm diameter rose and indicating suitability for face fixing on timber or metal doors with 19mm and 25mm handles.

F8 SUITABLE FOR FACE FIXING ON TIMBER OR METAL (19MM AND 25MM DIA. PULLS ONLY)

  • Face fixed handle with inner and outer cover rose to suit aluminium and timber doors.

  • Timber or Metal

Technical drawing of a door fitting plan view, suitable for metal or timber doors 35mm-54mm thick, showing an M8 spindle and Allen screw.

F9.85 SUITABLE FOR TIMBER OR METAL DOORS 35MM-54MM THICK

  • Handles fixed in a back to back configuration by means of a 8mm threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw. HOLE PREP. 8.5mm Dia

  • 8.5mm

  • Timber or Metal

Technical drawing of a door fitting system with M8 spindle and Allen screw for timber or metal doors, 55mm to 69mm thick. Includes external and internal labeled sections.

F9.100 SUITABLE FOR TIMBER OR METAL DOORS 55MM-69MM THICK

  • Handles fixed in a back to back configuration by means of a 8mm threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw. HOLE PREP. 8.5mm Dia

  • 8.5mm

  • Timber or Metal

Diagram showing plan view of a door lock assembly suitable for timber or metal doors, 70mm to 85mm thick, with parts labeled as M8 spindle, Allen screw, and metal or timber door."

F9.120 SUITABLE FOR TIMBER OR METAL DOORS 70MM-85MM THICK

  • Handles fixed in a back to back configuration by means of a 8mm threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw. HOLE PREP. 8.5mm Dia

  • 8.5mm

  • Timber or Metal

Cross-section diagram of door fitting, suitable for timber or metal doors 86mm-105mm thick, showing M8 spindle and Allen screw attachment.

F9.140 SUITABLE FOR TIMBER OR METAL DOORS 86MM-105MM THICK

  • Handles fixed in a back to back configuration by means of a 8mm threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw. HOLE PREP. 8.5mm Dia

  • 8.5mm

  • Timber or Metal

Technical drawing of door bolt assembly for metal or timber doors, 35mm to 55mm thick, featuring M8 smooth headed bolt. Plan view labeled for external and internal sections.

F9A.70 SUITABLE FOR TIMBER OR METAL DOORS 35MM – 55MM THICK

  • Single handle fixed with threaded a threaded decorative solid smooth headed bolt, available in a range of finishes to match handles HOLE PREP. 8.5mm Dia

  • 8.5mm

  • Timber or Metal

Plan view of F9A.90 bolt for metal or timber doors, 56mm-75mm thick, showing external and internal sections with an M8 smooth-headed bolt.

F9A.90 SUITABLE FOR TIMBER OR METAL DOORS 56MM – 75MM THICK

  • Single handle fixed with threaded a threaded decorative solid smooth headed bolt, available in a range of finishes to match handles HOLE PREP. 8.5mm Dia

  • 8.5mm

  • Timber or Metal

Diagram of M8 smooth-headed bolt for timber or metal door, 76mm-95mm thick, plan view showing external and internal sections.

F9A.110 SUITABLE FOR TIMBER OR METAL DOORS 76MM – 95MM THICK

  • Single handle fixed with threaded a threaded decorative solid smooth headed bolt, available in a range of finishes to match handles HOLE PREP. 8.5mm Dia

  • 8.5mm

  • Timber or Metal

Plan view diagram of a glass door fitting system, displaying external and internal components, including an M8 spindle, plastic washer, plastic ferrule, Allen screw, and suitable for glass doors 10mm-25mm thick.

F10 SUITABLE FOR GLASS DOORS 10MM-25MM THICK

  • Handles fixed in a back to back configuration to glass by means of a threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw, all come complete with washers and sleeves to protect the glass door. HOLE PREP. 12mm Dia

  • 12mm

  • Glass

Technical drawing of an F10A fitting suitable for 10-25mm glass doors, showing a plan view with a plastic washer, plastic ferrule, and M8 smooth-headed bolt.

F10A SUITABLE FOR GLASS DOORS 10MM-25MM THICK

  • Handles fixed single-sided to glass with a threaded decorative solid smooth headed bolt, available in a range of finishes to match handles supplied with washers and sleeves. HOLE PREP. 12mm Dia

  • 12mm

  • Glass

Diagram showing plan view of face fixing system for pull handles, featuring Allen screws, metal or timber door, and Rivnut for metal door.

F11 SUITABLE FOR FACE FIXING WHERE AN APPLICATION WILL NOT ALLOW BOLT THROUGH FIXING

  • Handle face fixed on one side where application will not allow bolt through fixing. supplied with rivnut and countersunk machine screw.

  • 9.5mm

  • Timber or Metal

technical drawing of a door handle fixing with Allen screws and rivnut for metal door

F11A SUITABLE FOR FACE FIXING WHERE AN APPLICATION WILL NOT ALLOW BOLT THROUGH FIXING

  • Handle face fixed on one side where application will not allow bolt through fixing. supplied with rivnut and countersunk machine screw.

  • 9.5mm

  • Timber or Metal

Plan view diagram of a glass door handle installation, showing components such as a 25mm diameter rose, M12 spindle, plastic washer, plastic ferrule, Allen screw, and instructions for suitability with 10-25mm thick glass doors and T-bar handles.

F16 SUITABLE FOR GLASS DOORS 10MM-25MM THICK (19MM HANDLES ONLY)

  • Handles fixed in a back to back configuration to glass by means of threaded spindle screwed to external handle. The internal handle is fixed by the allen screw, all come complete with washers and sleeves to protect glass doors. HOLE PREP. 18mm Dia

  • 18mm

  • Glass

Technical drawing of glass clad metal doors plan view showing cross-section with labels for glass, metal door, M12 spindle, and Allen screw. Includes dimensions and notes on installation.

F18.100 SUITABLE FOR GLASS CLAD METAL DOORS 55MM-69MM THICK

  • Handles fixed in a back to back configuration by means of a 12mm threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw HOLE PREP. 12.5mm Dia in metal, 18mm dia in glass

  • 12.5mm

  • Glass

Technical drawing of F18.120 glass clad metal door handle installation showing a plan view with labels for glass, M12 spindle, metal door, allen screw, and drilling instructions. Suitable for doors 70mm-85mm thick. Not compatible with offset fixings like ASH123 style.

F18.120 SUITABLE FOR GLASS CLAD METAL DOORS 70MM-85MM THICK

  • Handles fixed in a back to back configuration by means of a 12mm threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw HOLE PREP. 12.5mm Dia in metal, 18mm dia in glass

  • 12.5mm

  • Glass

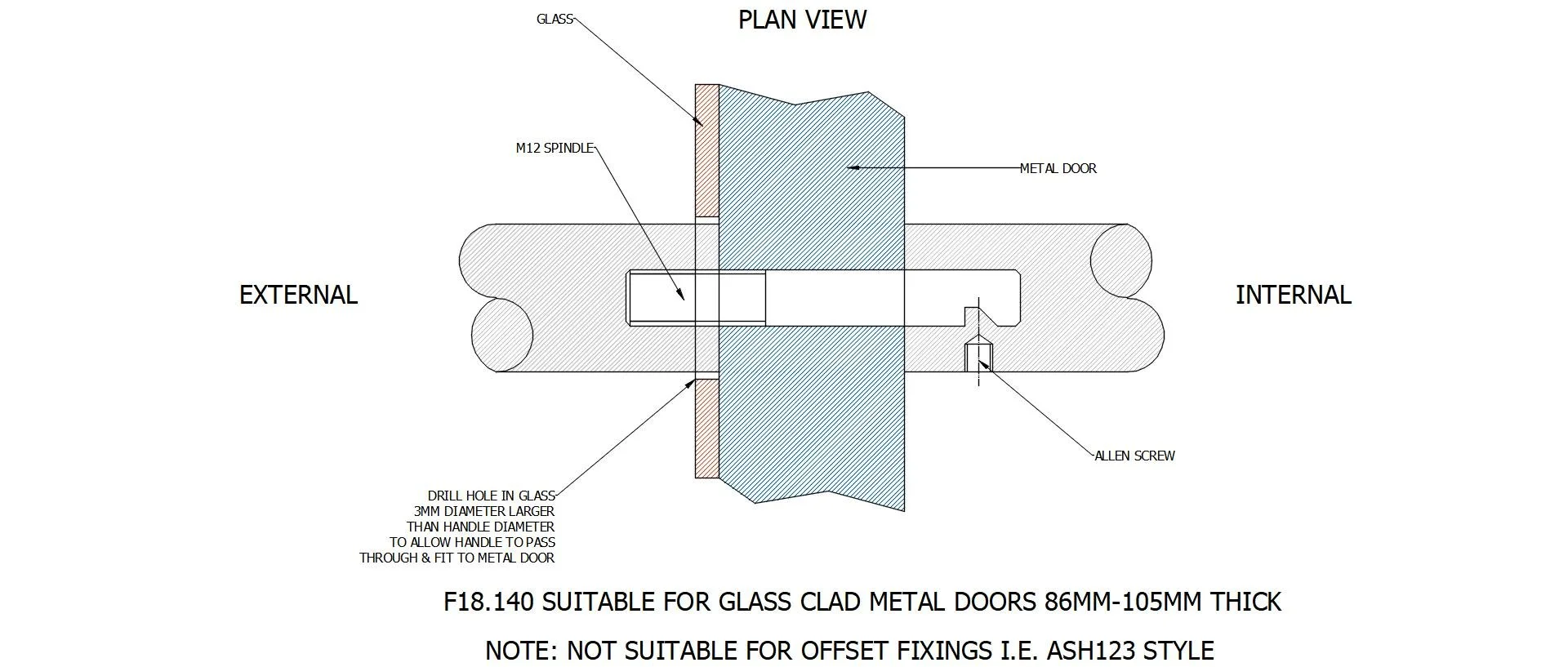

Technical drawing of a handle mechanism for glass-clad metal doors. Cross-sectional plan view shows a metal door with glass elements, an M12 spindle, and an Allen screw. Markings indicate external and internal sides. Text specifies suitability for 86mm-105mm thick doors and notes it's not for offset fixings like ASH123 style.

F18.140 SUITABLE FOR GLASS CLAD METAL DOORS 86MM-105MM THICK

  • Handles fixed in a back to back configuration by means of a 12mm threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw HOLE PREP. 12.5mm Dia in metal, 18mm dia in glass

  • 12.5mm

  • Glass clad metal

Technical drawing of glass clad metal door with handle

F19.70 SUITABLE FOR GLASS CLAD METAL DOORS 35MM – 55MM THICK

  • Handles fixed single sided to glass clad metal doors with an M12 decorative solid smooth headed bolt HOLE PREP. 12.5mm Dia in metal, 18mm dia in glass

  • 18mm

  • Glass clad metal

Technical drawing of handle installation for glass clad metal doors between 56mm and 75mm thick, showing external and internal views, with specifications for a drilled hole in the glass and details about an M12 smooth-headed bolt.

F19.90 SUITABLE FOR GLASS CLAD METAL DOORS 56MM – 75MM THICK

  • Handles fixed single sided to glass clad metal doors with an M12 decorative solid smooth headed bolt HOLE PREP. 12.5mm Dia in metal, 18mm dia in glass

  • 18mm

  • Glass clad metal

Technical drawing of glass-clad metal door fitting with dimensions and instructions.

F19.110 SUITABLE FOR GLASS CLAD METAL DOORS 76MM – 95MM THICK

  • Handles fixed single sided to glass clad metal doors with an M12 decorative solid smooth headed bolt HOLE PREP. 12.5mm Dia in metal, 18mm dia in glass

  • 18mm

  • Glass clad metal

Technical drawing of a glass and metal door handle fixing, plan view.

F20.100 SUITABLE FOR GLASS CLAD METAL DOORS 55MM-69MM THICK

  • Handles fixed in a back to back configuration by means of a 8mm threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw HOLE PREP. 8.5mm Dia in metal, 12.5mm dia in glass

  • 8.5mm Dia in metal, 12.5mm dia in glass

  • Glass clad metal

Technical drawing of a glass clad metal door handle fitting, showing plan view with labels for external and internal components, including glass, metal door, M8 spindle, and Allen screw. Text notes suitability for 70mm-85mm thick doors and specific fitting instructions.

F20.120 SUITABLE FOR GLASS CLAD METAL DOORS 70MM-85MM THICK

  • Handles fixed in a back to back configuration by means of a 8mm threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw HOLE PREP. 8.5mm Dia in metal, 12.5mm dia in glass

  • 8.5mm Dia in metal, 12.5mm dia in glass

  • Glass clad metal

Technical diagram of a glass clad metal door setup with labels indicating a plan view. Features include an M8 spindle, Allen screw, and instructions for drilling a hole in the glass, with external and internal sides marked. Suitable for doors 86mm-105mm thick.

F20.140 SUITABLE FOR GLASS CLAD METAL DOORS 86MM-105MM THICK

  • Handles fixed in a back to back configuration by means of a 8mm threaded spindle screwed to the external handle. The internal handle is fixed by the allen screw HOLE PREP. 8.5mm Dia in metal, 12.5mm dia in glass

  • 8.5mm Dia in metal, 12.5mm dia in glass

  • Glass clad metal

Technical drawing of a glass clad metal door handle fitting. Plan view shows external glass, internal metal door, and M8 smooth-headed bolt. Text notes suitability for 35mm to 55mm thick doors and specifies not suitable for offset fixings.

F21.70 SUITABLE FOR GLASS CLAD METAL DOORS 35MM – 55MM THICK

  • Handles fixed single sided to glass clad metal doors with an M8 decorative solid smooth headed bolt HOLE PREP. 12.5mm Dia in metal, 18mm dia in glass

  • 12.5mm Dia in metal, 18mm dia in glass

  • Glass clad metal

Technical diagram of a glass-clad metal door cross-section, showing external and internal views. Includes labels for glass, metal door, and M8 smooth-headed bolt. Instructions for a 3mm diameter hole in glass. Suitable for doors 56mm-75mm thick; not for offset fixings. Plan view provided.

F21.90 SUITABLE FOR GLASS CLAD METAL DOORS 56MM – 75MM THICK

  • Handles fixed single sided to glass clad metal doors with an M8 decorative solid smooth headed bolt HOLE PREP. 12.5mm Dia in metal, 18mm dia in glass

  • 12.5mm Dia in metal, 18mm dia in glass

  • Glass clad metal

Technical diagram of glass-clad metal door handle fitting

F21.110 SUITABLE FOR GLASS CLAD METAL DOORS 76MM – 95MM THICK

  • Handles fixed single sided to glass clad metal doors with an M8 decorative solid smooth headed bolt. Hole preparation is 12.5mm diameter in metal door frame. Hole in glass should be +2mm diameter to allow handle body to pass through and fix to door.

  • 12.5mm diameter in metal door frame. Hole in glass should be +2mm diameter

  • Glass clad metal
